  • 16kWh Low-Voltage

    Phehome

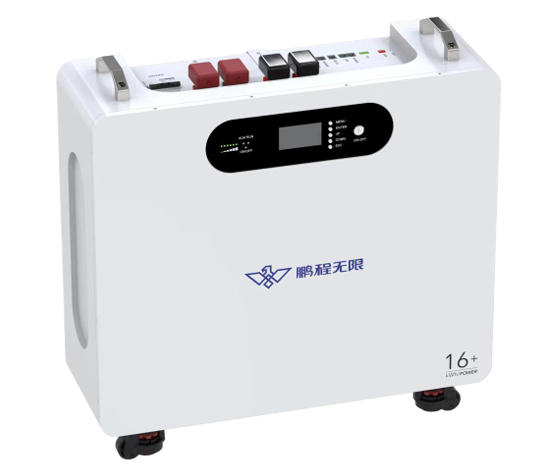

    16kWh Low-Voltage

    |  Data sheet



    Type

    LiFePO4 Battery

    Pack Method

    16S1P

    Nominal capacity

    314Ah

    Nominal voltage

    51.2V

    Energy

    16076.8Wh

    Charge cut-off voltage

    57.6V

    Discharge cut-off voltage

    43.2V

    Standard charge current

    150A

    Standard discharge current

    150A

    Discharge depth

    100%

    Cycle life

    ≥6,000 times

    Dimension

    690*240*690mm

    Communication Mode

    CAN,RS485

    Weight

    ≤135KG

    IPlevel

    IP20

    Maximum parallel quantity

    15

    Working temperature range

    Charge:0℃~55℃
    Discharge:-10℃~55℃

    Storage Temperature

    -20℃~60℃

    Safe & Reliable

    Using high quality lithium iron phosphate batteries

    Battery Cell Detection

    Real-time monitoring of core voltage and temperature, automatic alarm and protection

    Independent Switch

    Independent DC Micro Circuit Breaker, can disconnect individual battery packs individually

    Flexible Parallel Connection

    Up to 15 units can be connected in parallel, perfectly catering to high-power application cenarios

  • 5.12kWh High-Voltage Stackable

    |  Data sheet

    Phehome

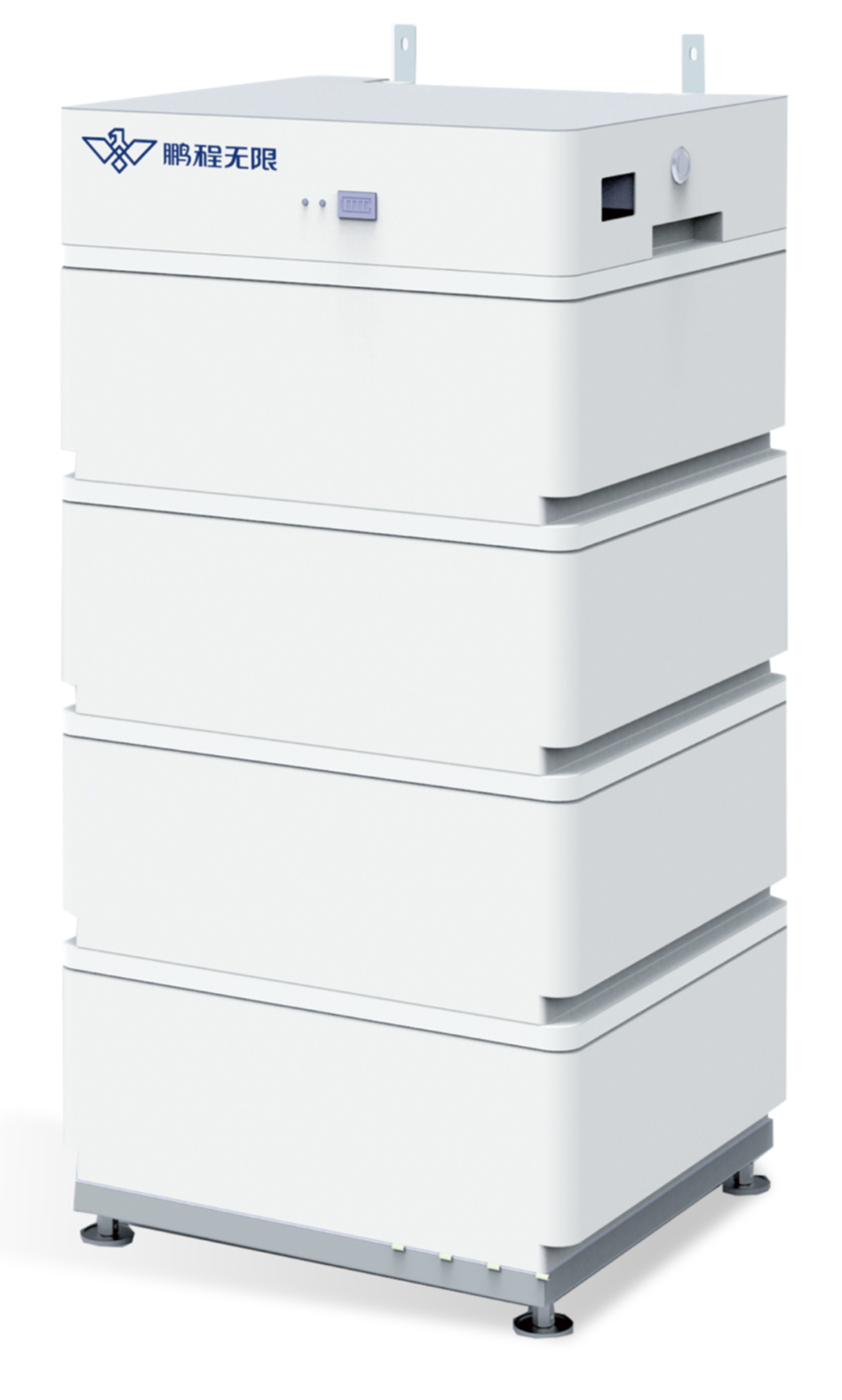

    High-Voltage Stackable 5.12kWh

    Basic Specifications
    Battery pack Net weight 46kg
    Dimensions (≤L×W× H) 450*390*190mm
    Battery voltage 51.2V(1P16S)
    Battery capacity per cell 5120Wh/100Ah
    Battery cell materials LFP
    Cycle life ≥3000
    Battery System System Battery Level/Capacity N*5120Wh/100Ah
    （Supports connecting multiple battery packs in series, where N represents the number of battery packs, and N ≤ 10)
    System voltage N*51.2V
    Protection Type Overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, overload protection, over-temperature protection, under-temperature protection



    Operating and storage temperatures
    Optimal operating temperature 25℃
    Discharge temperature range -20-60℃
    Charging temperature range 0-55℃
    Storage temperature range -30-65℃（The optimal storage temperature is 25°C）



    Input/output Specifications
    Continuous discharge current ≤100A
    continuous charging current ≤50A
    Cell voltage charge/discharge range 2.5-3.65V



    Flexible Expansion

    Support up to 10 packs in series connection. The system power can be flexibly expanded from 15.36 kWh to 51.2 kWh, achieving "on-demand power expansion"

    Single-pack High Capacity

    Each pack has a capacity of up to 5.12 kWh, using 100Ah large-capacity cells. No complex installation required, enabling rapid deployment and meeting basic power supply needs

    Stable Operation

    With a longer cycle life and higher safety, it ensures the long-term stable operation of the system, reduces maintenance costs, and provides a lasting and reliable energy guarantee

    High Efficiency and Energy Conservation

    High-voltage design and series-connected battery packs reduce current under equal power. It lowers line loss, improves energy conversion efficiency and maximizes power usage
